New M9 Car HUD Head Up Display 5'' Large Screen OBD II HUD Display
Speedometer Alarm Reflctive Film Two Systems high hud

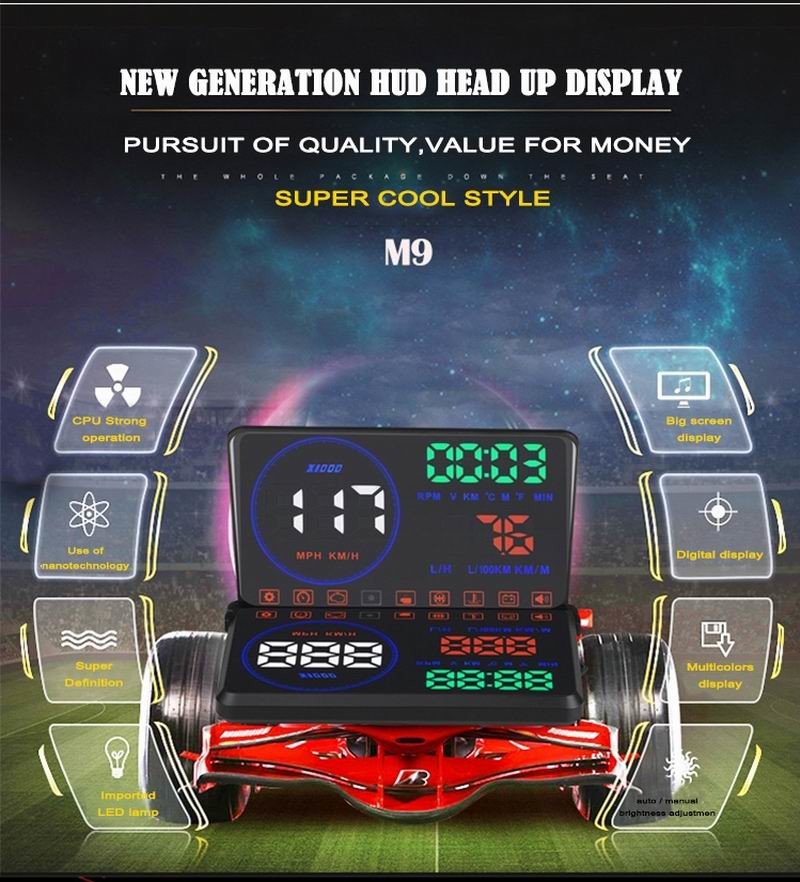

M9 HUD head up display
HUD short for Head Up Display. It displays driving datas on the
front windshield such as speed, rpm, fuel consumption,water
temperature,voltage; avoiding drivers become dangerous because of
watching the instrument while driving.Drivers can read the driving
information instantly, and can always keep the best state on the
way with HUD.
Main feature
1.Available for cars with OBD2 and EUOBD port(Car automatic
diagnosis system) ,plug and play
2. Screen 5.5 inch HD display
3. Multi-color design makes the screen more abundant and easier to
read
4. Nano-technology to eliminate double reflections,more clear.
5. New function: Driving distance measurement
6.Rich Contents: speed, rpm, water temperature, voltage,
instantaneous fuel consumption, average fuel consumption, driving
distance measurement, voltage, shift reminders, fatigue driving
reminders, low voltage alarm, high water temperature alarm, over
speed alarm, engine failure alarm, eliminate the fault code, freely
switch between kilometers&miles.
7. Auto power on/off: HUD start and off with vehicle started and
shutdown, effective protection of the car battery;retaining the
manual switch mode,more easy to control HUD.
8. Automatic and manual brightness adjustment mode,driving without
glare
Product description
Brand: GEYIREN
Model: M9 hud
Color: Black
Material: Plastic
Type: car hud film obd ii
Car Make: OBD2
Environment temperature: -40c- + 80c
Atmospheric pressure: 86-106KPa
Relative Humidity: 10% -95%
Environmental noise: <= 60dB (A)
Alarm sound level: = 30dB (A)
Working voltage: 9V ~ 16Vdc (12Vdc / 400mA)
HUD size: 12.5*7.5*1.5(cm)
HUD Weight: 110 g
Package Size: 20*14*11(cm)
Package Weight: 340g
Cable length:1M
Installation
1. Know your vehicle brand,HUD work for cars with OBDII agreement or
EU OBD agreement. Open the engine hood and find the sticker below
it , if it has words like OBDII CERTIFIED, then it can be
installed.
2. Find out the 16 pin diagnostic link of the vehicle and connect it
well with OBDII connecting line.
Packing
1x M9 Head Up Display
1 x Reflective Film
1 x OBD Cable
1 x Antiskid Pad
1 x English User Manual
